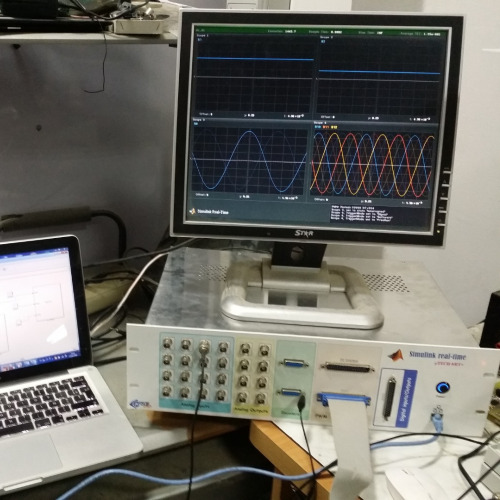

CU-SLRT Basic

 Simulink Real Time Basic Edition

Simulink real-time CU-SLRT Basic (DS1104 Equivalent interface) provides a high-performance, host-target prototyping environment that enables you to connect your Simulink® and Stateflow® models to physical systems and execute them in real time on CU-SLRT hardware. It provides comprehensive software capabilities for rapid prototyping (RCP) and hardware-in-the-loop (HIL) simulation of control systems

Features

  • 4 Core 2Ghz processor
  • FPGA Based I/Os
  • 8 analog inputs (16 bits)
  • 8 analog output (14 bits)
  • 16 Digital I/O
  • 12 PWM outputs
  • 2 encoders
  • Communication: Ethernet

  • 17" display
  • Rack 19" 2 unit box

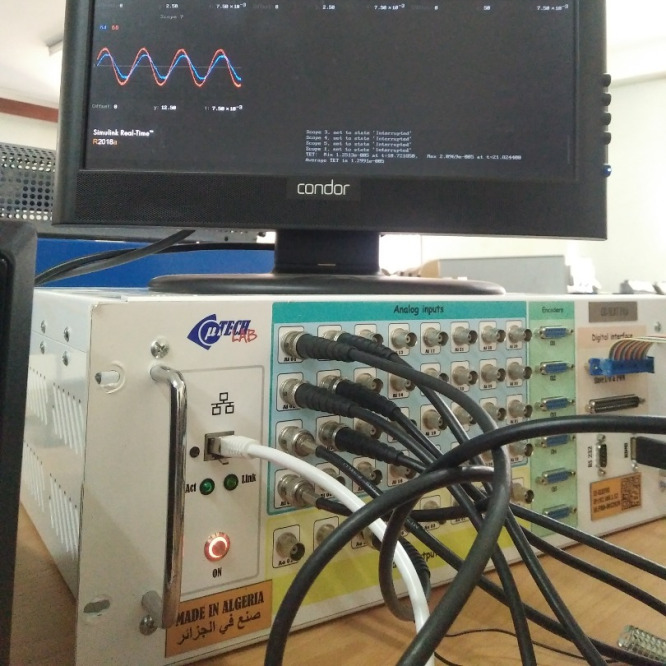

CU-SLRT Std

 Simulink Real Time Standard Edition

Simulink real-time CU-SLRT Std (DS1104 Equivalent interface+ features) provides a high-performance, host-target prototyping environment that enables you to connect your Simulink® and Stateflow® models to physical systems and execute them in real time on CU-SLRT hardware. It provides comprehensive software capabilities for rapid prototyping (RCP) and hardware-in-the-loop (HIL) simulation of control systems

Features

  • 6 Core 2.6Ghz processor
  • FPGA Based I/Os
  • 16 analog inputs (16 bits)
  • 8 analog output (14 bits)
  • 16 Digital I/O
  • 16 PWM outputs
  • 16 PWM Inputs for HIL
  • 2 encoders
  • Communication: Ethernet,RS232

  • 19" display
  • Rack 19" 4 unit box

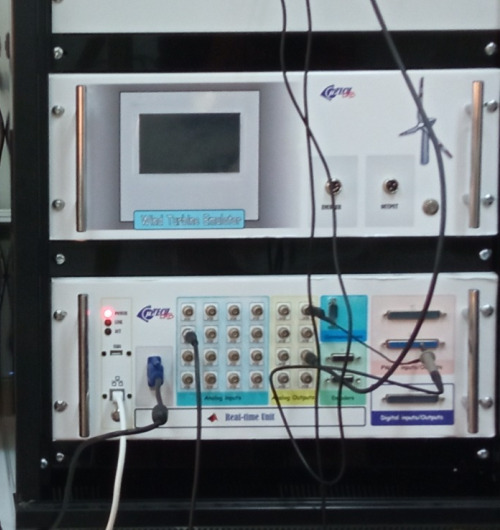

CU-SLRT Pro

Simulink Real Time professional Edition

Simulink real-time CU-SLRT Pro (DS1103 Equivalent interface) provides a high-performance, host-target prototyping environment that enables you to connect your Simulink® and Stateflow® models to physical systems and execute them in real time on CU-SLRT hardware. It provides comprehensive software capabilities for rapid prototyping (RCP) and hardware-in-the-loop (HIL) simulation of control systems

Features

  • 16 Core 2.5Ghz processor
  • FPGA Based I/Os
  • 32 analog inputs (16 bits)
  • 16 analog output (14 bits)
  • 32 Digital I/O
  • 32 PWM outputs
  • 16 PWM Inputs for HIL
  • 3 encoders (2 Quadrature+ 1 SSI)
  • Communication: Ethernet, Optic fiber, CAN, RS232

  • 27" display

  • Rack 19" 4 unit box

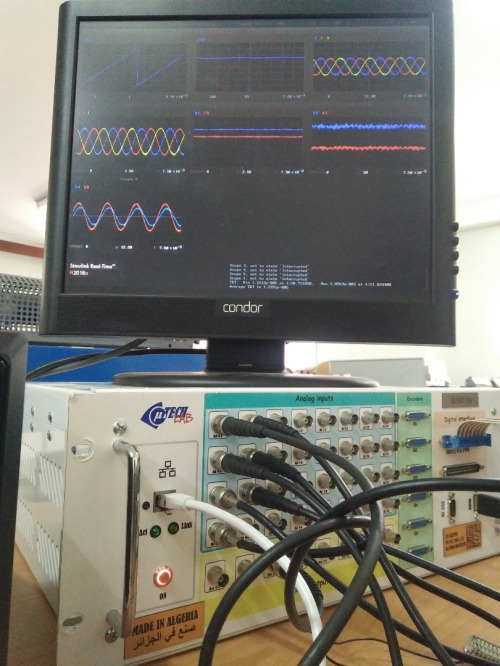

CU-SLRT Pro+

Simulink Real Time improved Professional Edition

Simulink real-time CU-SLRT Pro+ (DS1103 Equivalent interface + calculation performances) provides a high-performance, host-target prototyping environment that enables you to connect your Simulink® and Stateflow® models to physical systems and execute them in real time on CU-SLRT hardware. It provides comprehensive software capabilities for rapid prototyping (RCP) and hardware-in-the-loop (HIL) simulation of control systems

Features

  • 32 Core 2.5Ghz processor
  • FPGA Based I/Os
  • 32 analog inputs (16 bits)
  • 16 analog output (14 bits)
  • 32 Digital I/O
  • 32 PWM outputs
  • 16 PWM Inputs for HIL
  • 3 encoders (2 Quadrature+ 1 SSI)
  • Communication: Ethernet, Optic fiber, CAN, RS232

  • 27" display

  • Rack 19" 4 unit box
